| 2W.W雙螺桿多相混輸泵外形及安裝尺寸 |
※ 結構特點
該型泵采用雙吸式結構，螺桿兩端處于同一壓力腔中，軸向力可以自行平衡。兩端軸承采用外裝式，單獨采用潤滑油（脂）潤滑，因而不受輸送介質的影響。兩螺桿間用一對同步齒輪驅動，螺桿齒面間并不接觸，而留有一微小間隙，介質中的雜質并不能對螺桿齒面產生直接的磨損（除沖刷外）。 |
 |
| 1.齒輪箱蓋 2.齒輪 3.滾動軸承 4.后支架 5.密封 6.螺套A、B 7.泵體 8.調節螺栓 9.襯套 10.主動軸 11.前支架 12.從動軸 13.滾動軸承 14.壓蓋 |
※。性能參數：
| 型號 規格 |
壓力 MPa |
1450r/min | 950r/min | 720r/min | |||||||||||||
| 30cst | 75cst | 150cst | 300cst | 450cst | 750cst | 1500cst | 2500cst | ||||||||||
| m3/h | kw | m3/h | kw | m3/h | kw | m3/h | kw | m3/h | kw | m3/h | kw | m3/h | kw | m3/h | kw | ||
| 2.5-15 | 0.6 | 2.4 | 1 | 3 | 1.2 | 3.2 | 1.4 | 3.3 | 1.8 | 1.8 | 1.2 | 1.8 | 1.4 | 1.3 | 1.2 | 1.3 | 1.5 |
| 1.0 | 1.7 | 1.4 | 2.6 | 1.6 | 4.9 | 1.9 | 3.1 | 2.2 | 1.7 | 1.4 | 1.7 | 1.7 | 1.2 | 1.4 | 1.2 | 1.7 | |
| 2.5-20 | 0.4 | 3.9 | 1 | 4.3 | 1.2 | 4.4 | 1.4 | 4.5 | 1.7 | 2.6 | 1.1 | 2.6 | 1.3 | 1.9 | 1.2 | 1.9 | 1.4 |
| 1.40.6 | 3.4 | 1.2 | 4 | 1.4 | 4.2 | 1.7 | 4.3 | 2 | 2.5 | 1.5 | 2.5 | 1.5 | 1.8 | 1.3 | 1.8 | 1.6 | |
| 2.8-18 | 0.6 | 4.3 | 1.5 | 4.8 | 1.9 | 4.9 | 2.2 | 5 | 2.7 | 2.9 | 1.8 | 2.9 | 2.1 | 2.1 | 1.9 | 2.1 | 2.3 |
| 1.0 | 3.7 | 2.1 | 4.4 | 2.5 | 4.7 | 2.8 | 4.8 | 3.4 | 2.7 | 2.2 | 2.7 | 2.5 | 2 | 2.2 | 2 | 2.6 | |
| 2.8-24 | 0.4 | 6.3 | 1.4 | 6.6 | 1.8 | 6.7 | 2.1 | 6.8 | 2.6 | 4 | 1.7 | 4 | 2.1 | 2.9 | 1.8 | 2.9 | 2.3 |
| 0.6 | 5.9 | 1.8 | 6.4 | 2.2 | 6.5 | 2.5 | 6.6 | 3 | 3.8 | 2 | 3.8 | 2.3 | 2.7 | 2 | 2.7 | 2.5 | |
| 3.1-22 | 0.6 | 7.7 | 2.3 | 8.2 | 2.7 | 8.3 | 3.1 | 8.4 | 3.8 | 5 | 2.5 | 5 | 2.9 | 3.7 | 2.5 | 3.7 | 3 |
| 1.0 | 7 | 3.2 | 7.8 | 3.7 | 8 | 4.1 | 8.1 | 4.8 | 4.8 | 3.1 | 4.8 | 3.6 | 3.5 | 3 | 3.5 | 3.5 | |
| 3.1-30 | 0.4 | 11.1 | 2.1 | 11.4 | 2.5 | 11.5 | 3 | 11.6 | 3.6 | 6.9 | 2.4 | 6.9 | 2.8 | 5.1 | 2.5 | 5.1 | 3 |
| 0.6 | 10.6 | 2.8 | 11.1 | 3.2 | 11.3 | 3.7 | 11.4 | 4.3 | 6.7 | 2.8 | 6.7 | 3.3 | 4.9 | 2.8 | 4.9 | 3.3 | |
| 3.4-24 | 1.6 | 7.4 | 7.2 | 9 | 8.1 | 9.8 | 9.3 | 5.7 | 6.1 | 5.7 | 6.9 | 4.3 | 5.8 | 4.3 | 6.7 | ||
| 2.0 | 6.5 | 8.5 | 85 | 9.3 | 9.5 | 10.6 | 5.5 | 6.9 | 5.5 | 7.7 | 4.1 | 6.4 | 4.1 | 7.4 | |||
| 2.5 | 5.3 | 10.1 | 7.8 | 10.9 | 9.1 | 12.2 | 5.1 | 8 | 5.1 | 8.7 | 3.9 | 7.2 | 3.9 | 8.2 | |||
| 3.4-30 | 1.0 | 8.3 | 5.3 | 11.4 | 6.1 | 12.4 | 7 | 12.9 | 8.2 | 7.6 | 5.3 | 7.6 | 6.1 | 5.6 | 5.3 | 5.6 | 6.2 |
| 1.25 | 6.9 | 6.3 | 10.7 | 7.1 | 12.1 | 8 | 12.6 | 9.2 | 7.4 | 6 | 7.4 | 6.8 | 5.5 | 5.8 | 5.5 | 6.7 | |
| 1.6 | 5 | 7.6 | 9.9 | 8.5 | 11.5 | 9.4 | 12.3 | 10.6 | 7.1 | 6.9 | 7.1 | 7.7 | 5.3 | 6.4 | 5.3 | 7.4 | |
| 3.4-40 | 0.6 | 14.8 | 4.5 | 16.8 | 5.3 | 17.5 | 6.2 | 17.8 | 7.4 | 10.6 | 4.8 | 10.6 | 5.6 | 7.8 | 4.9 | 7.8 | 5.8 |
| 1.0 | 12.2 | 6.7 | 15.5 | 7.4 | 16.6 | 8.3 | 17.2 | 9.5 | 10 | 6.2 | 10 | 7 | 7.4 | 5.9 | 7.4 | 6.9 | |
| 3.4-56 | 0.4 | 21.8 | 4.3 | 23.2 | 5.1 | 23.7 | 5.9 | 24 | 7.1 | 14.3 | 4.7 | 14.4 | 5.5 | 10.5 | 4.8 | 10.5 | 5.7 |
| 0.6 | 202 | 5.8 | 24.5 | 6.6 | 23.1 | 7.4 | 23.4 | 8.6 | 13.8 | 5.7 | 13.9 | 6.4 | 10.1 | 5.5 | 10.1 | 6.4 | |

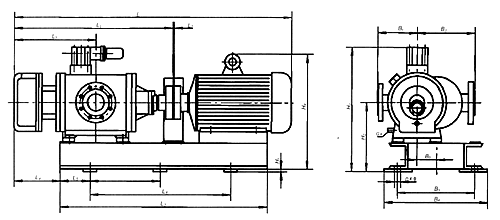

※ 2W.W型雙螺桿泵尺寸圖
 |
 |
| 進口法蘭（方向水平） | 出口法蘭（方向水平或向上） |
| 說明：泵體A使用壓力≤1.0MPa 泵體Ｂ使用壓力≤2.5MPa 泵體C使用壓力≤4.0MPa | |

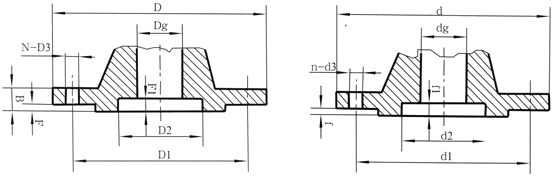

※ 進、出口法蘭聯接尺寸表（泵體代號A或B）
| 型號規格 泵體代號 |
進口法蘭 | 出口法蘭 | ||||||||||||
| Dg | D | D1 | D2 | F | B | N-D3 | dg | d | d1 | d2 | f | b | n-d3 | |
| 2.5-A | 40 | 145 | 110 | 85 | 3 | 18 | 4-18 | 32 | 135 | 100 | 78 | 2 | 16 | 4-18 |
| 2.8-A | 50 | 160 | 125 | 100 | 3 | 18 | 4-18 | 40 | 145 | 110 | 85 | 3 | 18 | 4-18 |
| 3.1-A | 65 | 180 | 145 | 120 | 3 | 20 | 4-18 | 50 | 160 | 125 | 100 | 3 | 18 | 4-18 |
| 3.2-A | 80 | 195 | 160 | 135 | 3 | 20 | 4-18 | 65 | 180 | 145 | 120 | 3 | 20 | 4-18 |
| 3.2-B | 65 | 180 | 145 | 120 | 3 | 24 | 8-18 | 50 | 160 | 125 | 100 | 3 | 24 | 4-18 |
| 3.4-A | 80 | 195 | 160 | 135 | 3 | 20 | 4-18 | 65 | 180 | 145 | 120 | 3 | 20 | 4-18 |
| 3.4-B | 65 | 180 | 145 | 120 | 3 | 24 | 8-18 | 50 | 160 | 125 | 100 | 3 | 24 | 4-18 |
| 4.0-A | 100 | 215 | 180 | 155 | 3 | 22 | 8-18 | 80 | 195 | 160 | 135 | 3 | 20 | 4-18 |
| 4.0-B | 80 | 195 | 160 | 135 | 3 | 26 | 8-18 | 65 | 180 | 145 | 120 | 3 | 24 | 8-18 |
| 4.5-A | 125 | 245 | 210 | 185 | 3 | 24 | 8-18 | 100 | 215 | 180 | 155 | 3 | 22 | 8-18 |
| 4.5-B | 80 | 195 | 160 | 135 | 3 | 26 | 8-18 | 65 | 180 | 145 | 120 | 3 | 24 | 8-18 |
| 5.0-A | 150 | 280 | 240 | 210 | 3 | 24 | 8-23 | 125 | 245 | 210 | 185 | 3 | 24 | 8-18 |
| 5.0-B | 100 | 230 | 190 | 160 | 3 | 28 | 8-23 | 80 | 195 | 160 | 135 | 3 | 26 | 8-18 |
| 5.5-A | 175 | 310 | 270 | 240 | 3 | 24 | 8-23 | 150 | 280 | 240 | 210 | 3 | 24 | 8-23 |
| 5.5-B | 125 | 270 | 220 | 188 | 3 | 30 | 8-25 | 100 | 230 | 190 | 160 | 3 | 28 | 8-23 |
| 6.1-A | 225 | 365 | 325 | 295 | 3 | 24 | 8-23 | 200 | 335 | 295 | 205 | 3 | 24 | 8-23 |
| 6.1-B | 150 | 300 | 250 | 218 | 3 | 30 | 8-25 | 125 | 270 | 220 | 188 | 3 | 30 | 8-25 |
| 6.9-A | 250 | 390 | 350 | 320 | 3 | 26 | 12-32 | 225 | 365 | 325 | 295 | 3 | 24 | 8-23 |
| 6.9-B | 200 | 360 | 310 | 278 | 3 | 32 | 12-25 | 175 | 330 | 280 | 248 | 3 | 32 | 12-25 |
| 7.6-A | 300 | 440 | 400 | 368 | 4 | 28 | 12-23 | 250 | 390 | 350 | 320 | 3 | 26 | 12-23 |
| 7.6-B | 200 | 360 | 310 | 278 | 3 | 32 | 12-25 | 175 | 330 | 280 | 248 | 3 | 32 | 12-25 |
| 8.3-A | 300 | 440 | 400 | 368 | 4 | 28 | 12-23 | 250 | 405 | 355 | 320 | 3 | 32 | 12-25 |
| 8.3-B | 225 | 395 | 340 | 302 | 3 | 34 | 12-32 | 1758 | 330 | 280 | 248 | 3 | 32 | 12-25 |
 |
|
| 進口法蘭（方向水平） | 出口法蘭（方向水平或向上） |
| 說明：泵體A使用壓力≤1.0MPa 泵體Ｂ使用壓力≤2.5MPa 泵體C使用壓力≤4.0MPa | |
※ 進、出口法蘭聯接尺寸表（泵體代號C）
| 型號規格 | 進口法蘭 | 出口法蘭 | ||||||||||||||
| 泵體代號 | Dg | D | D1 | D2 | B | F | F1 | N-d3 | dg | d | d1 | d2 | b | f | f1 | n-d3 |
| 5.0-C | 80 | 195 | 160 | 121 | 24 | 3 | 4 | 8-18 | 65 | 180 | 145 | 110 | 22 | 3 | 4 | 8-18 |
| 5.5-C | 100 | 230 | 190 | 150 | 26 | 3 | 4.5 | 8-23 | 80 | 195 | 160 | 121 | 24 | 3 | 4 | 8-18 |
| 6.1-C | 125 | 270 | 220 | 176 | 28 | 3 | 4.5 | 8-25 | 100 | 230 | 190 | 150 | 26 | 3 | 4.5 | 8-23 |
| 6.9-C | 150 | 300 | 250 | 204 | 30 | 3 | 4.5 | 8-25 | 125 | 270 | 220 | 176 | 28 | 3 | 4.5 | 8-25 |
 |
 |

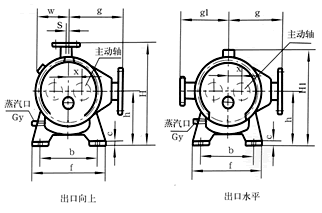

※ 2W.W密封型雙螺桿泵尺寸表
| 型號 規格 |
共同部分尺寸 | 軸端尺寸 | 出口向上 | 出口水平 | 重量 | |||||||||||||||||
| K | Q | Q1 | a | a1 | h | b | f | c | g | φ | Gy | D | F | E | L | H | W | S | H1 | gl | Kg | |
| 2.5- | 550 | 253 | 297 | 120 | 180 | 140 | 150 | 190 | 158 | 195 | 12 | 1/4 | 16 | 5 | 18 | 32 | 286 | 100 | 10 | 288 | 148 | |
| 2.8- | 600 | 278 | 322 | 147 | 220 | 150 | 160 | 200 | 15 | 195 | 14 | 3/8 | 21 | 6 | 23.5 | 40 | 305 | 105 | 10 | 290 | 155 | |
| 3.1- | 620 | 286 | 334 | 145 | 220 | 155 | 180 | 220 | 16 | 200 | 14 | 3/8 | 22 | 6 | 24.5 | 40 | 315 | 110 | 10 | 295 | 160 | |
| 3.2- | 645 | 304 | 341 | 172 | 252 | 170 | 190 | 240 | 18 | 220 | 14 | 3/8 | 24.5 | 8 | 27.5 | 40 | 295 | 175 | ||||
| 3.4- | 700 | 320 | 380 | 194 | 275 | 170 | 205 | 260 | 18 | 230 | 15 | 3/8 | 27 | 8 | 30 | 40 | 350 | 130 | 15 | 330 | 180 | |
 |
 |
 |
 |
 |

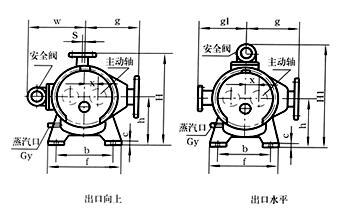

※ 2W.W密封型雙螺桿泵尺寸表
| 型號 規格 |
共同部分尺寸 | 軸端尺寸 | 出口向上 | 出口水平 | 重量 | |||||||||||||||||
| K | Q | Q1 | a | a1 | h | b | f | c | g | φ | Gy | D | F | E | L | H | W | S | H1 | gl | Kg | |
| 4.0- | 795 | 381 | 414 | 260 | 330 | 190 | 220 | 260 | 20 | 260 | 19 | 1/2" | 27.5 | 8 | 30.5 | 70 | 385 | 292 | 15 | 482 | 195 | |
| 4.5- | 865 | 408 | 457 | 279 | 370 | 205 | 250 | 300 | 20 | 290 | 23 | 1/2" | 37 | 12 | 40 | 70 | 420 | 320 | 20 | 525 | 215 | |
| 5.0 | 1035 | 491 | 544 | 389 | 490 | 240 | 250 | 320 | 25 | 320 | 23 | 1/2" | 45 | 14 | 48.5 | 75 | 480 | 425 | 30 | 665 | 240 | |
| 5.5 | 1130 | 547 | 583 | 457 | 570 | 255 | 300 | 3902 | 25 | 365 | 24 | 1/2" | 47.5 | 14 | 51 | 85 | 515 | 465 | 30 | 728 | 260 | |
| 6.1 | 1225 | 596 | 629 | 530 | 630 | 275 | 320 | 390 | 25 | 385 | 25 | 1/2" | 51 | 16 | 55 | 90 | 545 | 510 | 30 | 785 | 270 | |
| 6.9- | 1310 | 644 | 666 | 560 | 680 | 300 | 380 | 460 | 30 | 395 | 25 | 1/2" | 58 | 16 | 62 | 120 | 590 | 550 | 35 | 850 | 290 | |
| 7.6 | 1465 | 725 | 740 | 698 | 820 | 325 | 380 | 460 | 30 | 410 | 25 | 1/2" | 58 | 16 | 62 | 120 | 645 | 560 | 50 | 885 | 315 | |
| 8.3- | 1565 | 750 | 815 | 712 | 840 | 350 | 410 | 480 | 30 | 495 | 30 | 1/2" | 64 | 18 | 68 | 130 | 690 | 620 | 50 | 970 | 340 | |

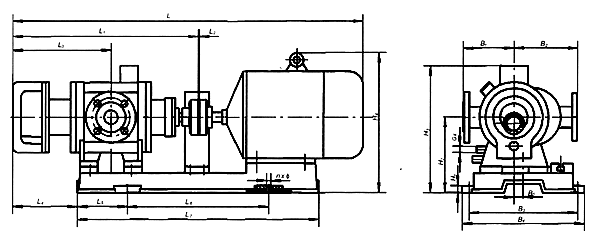

| 型號 機座號 | L | L1 | L2 | L3 | L4 | L5 | L6 | L7 | B1 | B2 | B3 | B4 | B5 | H1 | H2 | H3 | H4 | Gx | n×φ | 配套電機型號 | 電機功率 |
